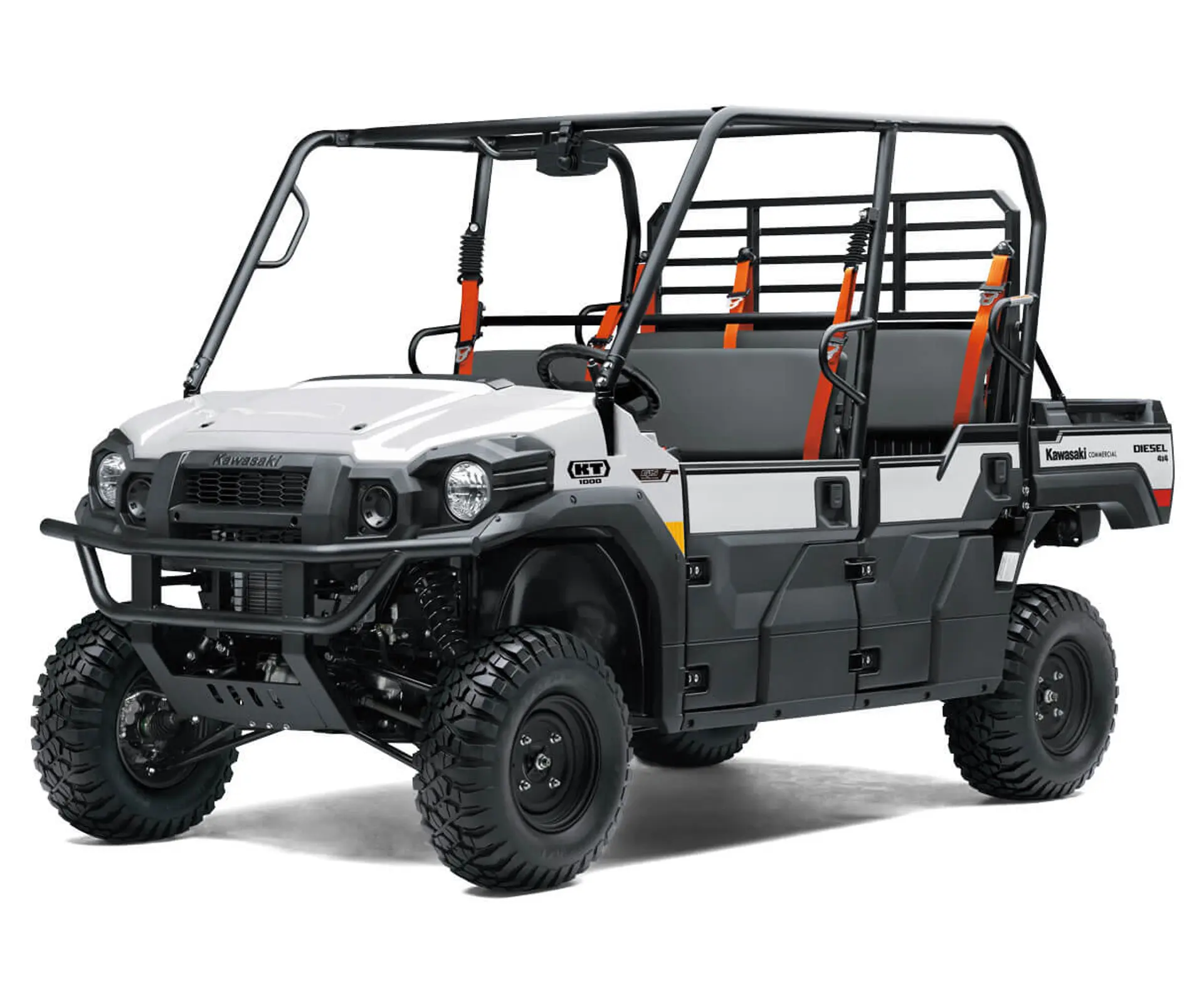

Image 1 of 4KT1000 DIESEL TRANS4x4®
Reliable and robust
- 4-stroke, 3-cylinder engine
- Electrically selectable 2WD/4WD with drive shaft
- 7.9-gallon fuel capacity
- 3–6 person seating capacity
- 1,000 lbs cargo bed load capacity
BASE MODEL MSRP*$20,599.00
Features
Our UTVs are versatile, reliable, and designed for tough tasks. Hauling, towing, transporting, and more — these vehicles adapt to your needs.
TRANS CAB™ system
Diesel-powered performance
Max torque: 38.4 lb-ft/2,500 rpm
Transmission 2-SP, automatic, reverse
1,000 lbs. cargo bed load capacity
Specifications
The Kawasaki Commercial KT1000 Diesel TRANS4x4® is engineered for reliability and strength, making it a formidable choice for both work and recreation. Designed to handle tough tasks, it offers a blend of power, durability, and versatility.
Main Features
Main Features
- Overall Length
- 133.3 in
- Overall Width
- 64.0 in
- Overall Height
- 77.6 in
- Curb Weight
- 2,013 lb
- Fuel Capacity
- 7.9 gal
- Maximum Torque
- 38.4 lb-ft @ 2,500 rpm
- Cargo Bed Load Capacity
- 1,000 lb (long bed) / 350 lb (short bed)
- Maximum Towing Capability
- 2,000 lb
- Seating Capacity
- 3-Person (1 Row), 6-Person (2 Row)
- Engine
- 4-Stroke, Diesel 3-Cylinder, OHV, Liquid-Cooled
- Displacement
- 993 cc
- Fuel System
- Bosch In-Line Type
- Driving System: Primary
- Belt Converter
- Driving System: Final
- 2WD / 4WD, Drive Shaft
Performance
Performance
- Max. Torque
- 38.4 lb-ft / 2,500 rpm
- Min. Turning Radius
- 15.7 ft
- Cargo Bed Load Capacity (Long Bed)
- 1,000 lb
- Cargo Bed Load Capacity (Short Bed)
- 350 lb
- Cargo Box (Inside) LxWxH (Long Bed)
- 42.7 x 53.7 x 11 in
- Cargo Box (Inside) LxWxH (Short Bed)
- 22 x 53.7 x 11 in
- Seating Capacity: Front/Rear (USA/CAN)
- 3 People / 3 People
- Max. Permissible Load
- 1,532 lb
- Max. Towing Capability
- 2,000 lb
Drivetrain
Drivetrain
- Driving System: Primary
- Belt Converter
- Driving System: Final
- 2WD / 4WD, Drive Shaft
- Transmission
- 2-SP, Automatic, Reverse
- Gear Ratios: Forward (High)
- 1.952 (34/33 x 36/19)
- Gear Ratios: Forward (Low)
- 3.876 (45/22 x 36/19)
- Gear Ratios: Reverse
- 3.009 (27/17 x 36/19)
- Primary Reduction Ratio
- 3.334 ~ 0.756
- Final Reduction Ratio: Front
- 6.382 (31/17 x 35/10)
- Final Reduction Ratio: Rear
- 6.245 (31/21 x 55/13)
Engine
Engine
- Type
- 4st, Diesel 3-Cyl, In-line OHV, Liquid-Cooled
- Bore x Stroke
- 74.0 x 77.0 mm
- Displacement
- 993 cc
- Compression Ratio
- 23.5:1
- Fuel Supply
- Bosch In-Line Type
- Lubrication System
- Forced Lub. Wet
- Starting System
- EL. Starter
Frame
Frame
- Type
- Steel Tube, Ladder Type
- Suspension: Front
- Double Wishbone
- Suspension: Rear
- Double Wishbone
- Wheel Travel: Front
- 3.1 in
- Wheel Travel: Rear (Left, Right)
- 8.5 in / 8.7 in
- Caster (Rake Angle)
- 4.4°
- Steering Angle (Left, Right)
- 40° (IN) / 31° (OUT), 40° (IN) / 31° (OUT)
- Tire: Front
- 26 x 10.00-12 8PR
- Tire: Rear
- 26 x 10.00-12 8PR
- Tread (Front / Rear)
- 54.7 in / 52 in
- Brake: Front Type
- Dual Disc with 2 Piston Caliper
- Brake: Rear Type
- Dual Disc with 1 Piston Caliper
- Parking Brake
- Dual Disc (Mechanical)
Dimensions
Dimensions
- Overall Length
- 133.3 in
- Overall Width
- 64 in
- Overall Height
- 77.6 in
- Wheelbase
- 92.3 in
- Road Clearance
- 10.2 in
- Seat Height
- 34.6 in / 38 in
- Curb Weight
- 2,013 lb
- Fuel Tank Capacity
- 7.9 gal
