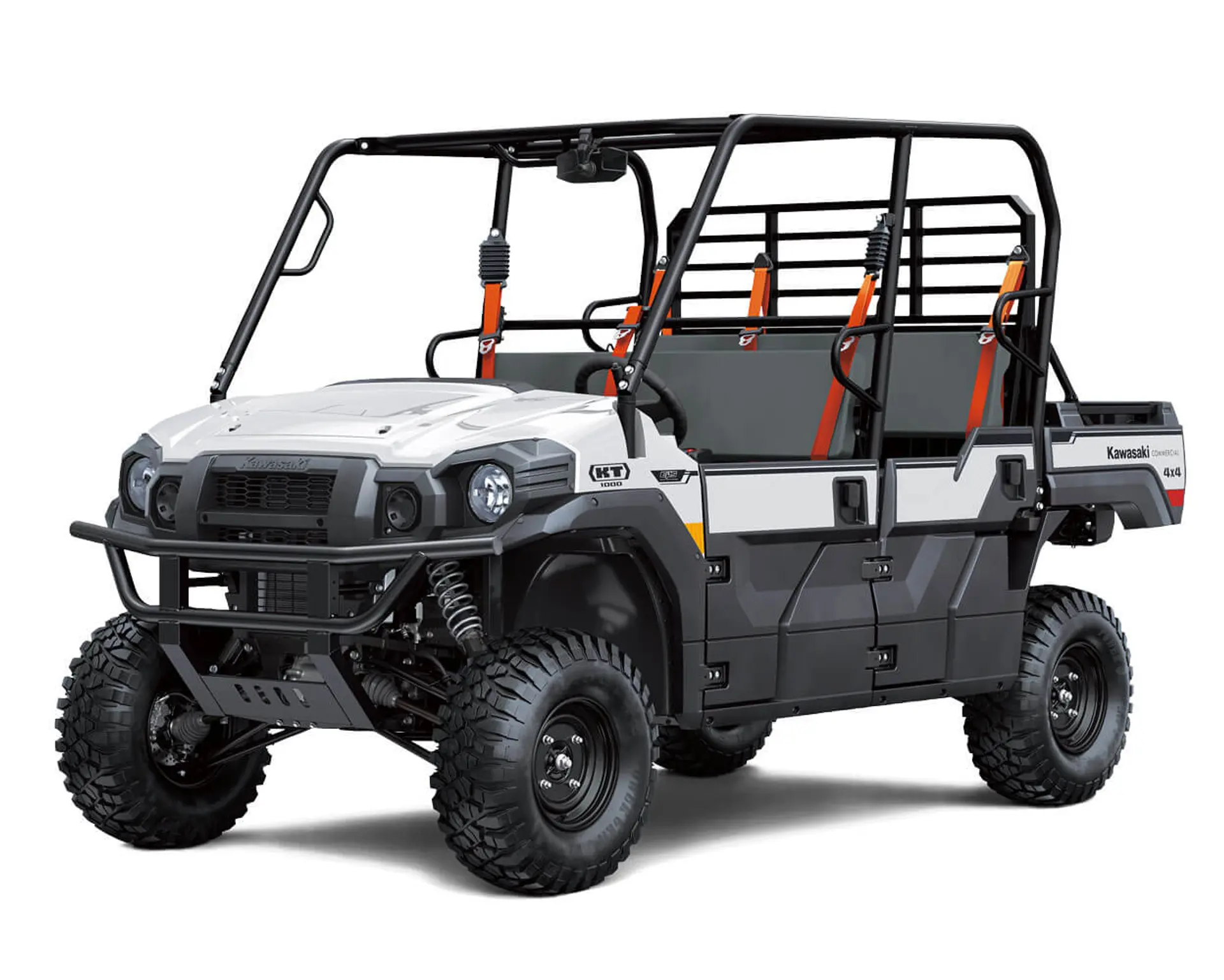

A white KT1000 TRANS UTV.Image 1 of 3

KT1000 TRANS4x4®

Reliable and robust

  • 4-stroke, 3-cylinder engine
  • Electrically selectable 2WD/4WD with drive shaft
  • 7.9-gallon fuel capacity
  • 3–6 person seating capacity
  • 1,000 lbs cargo bed load capacity
BASE MODEL MSRP*$19,199.00
Contact Us

Features

Our UTVs are versatile, reliable, and designed for tough tasks. Hauling, towing, transporting, and more — these vehicles adapt to your needs.

TRANS CAB™ system

Gas-powered performance

Max torque: 61.2 lb-ft/4,500 rpm

Transmission 2-SP, automatic, reverse

1,000 lbs. cargo bed load capacity

Specifications

The KT1000 TRANS4x4® is engineered for reliability and strength, making it a formidable choice for both work and recreation. Designed to handle tough tasks, it offers a blend of power, durability, and versatility.

Overall Length
133.3 in
Overall Width
64.0 in
Overall Height
77.6 in
Curb Weight
1,960 lb
Fuel Capacity
7.9 gal
Maximum Torque
61.2 lb-ft @ 4,500 rpm
Cargo Bed Load Capacity
1,000 lb (long bed) / 350 lb (short bed)
Maximum Towing Capability
2,000 lb
Seating Capacity
3-Person (1 Row), 6-Person (2 Row)
Engine
4-Stroke, 3-Cylinder, OHV, Liquid-Cooled
Displacement
999 cc
Fuel System
Fuel Injection (φ38×1)
Driving System: Primary
Belt Converter
Driving System: Final
2WD / 4WD, Drive Shaft
Max. Torque
61.2 lb-ft / 4,500 rpm
Min. Turning Radius
15.7 ft
Cargo Bed Load Capacity (Long Bed)
1,000 lb
Cargo Bed Load Capacity (Short Bed)
350 lb
Cargo Box (Inside) LxWxH (Long Bed)
42.7 x 53.7 x 11 in
Cargo Box (Inside) LxWxH (Short Bed)
22 x 53.7 x 11 in
Seating Capacity: Front/Rear (USA/CAN)
3 People / 3 People
Max. Permissible Load
1,574 lb
Max. Towing Capability
2,000 lb
Driving System: Primary
Belt Converter
Driving System: Final
2WD / 4WD, Drive Shaft
Transmission
2-SP, Automatic, Reverse
Gear Ratios: Forward (High)
1.668 (34/33 x 34/21)
Gear Ratios: Forward (Low)
3.312 (45/22 x 34/21)
Gear Ratios: Reverse
2.571 (27/17 x 34/21)
Primary Reduction Ratio
3.28 ~ 0.70
Final Reduction Ratio: Front
6.382 (31/17 x 35/10)
Final Reduction Ratio: Rear
6.245 (31/21 x 55/13)
Type
4st, 3-Cyl, In-line OHV, Liquid-Cooled
Bore x Stroke
92.0 x 75.0 mm
Displacement
999 cc
Compression Ratio
10.1:1
Fuel Supply
Fuel Injection (φ38×1)
Lubrication System
Forced Lub. Wet
Starting System
EL. Starter
Type
Steel Tube, Ladder Type
Suspension: Front
Double Wishbone
Suspension: Rear
Double Wishbone
Wheel Travel: Front
11 in
Wheel Travel: Rear (Left, Right)
10.1 in
Caster (Rake Angle)
3.7°
Steering Angle (Left, Right)
40° (IN) / 31° (OUT), 40° (IN) / 31° (OUT)
Tire: Front
26 x 10.00-12 8PR
Tire: Rear
26 x 10.00-12 8PR
Tread (Front / Rear)
54.1 in / 52 in
Brake: Front Type
Dual Disc with 2 Piston Caliper
Brake: Rear Type
Dual Disc with 1 Piston Caliper
Parking Brake
Dual Disc (Mechanical)
Overall Length
133.3 in
Overall Width
64 in
Overall Height
77.6 in
Wheelbase
92.3 in
Road Clearance
Std. Preload Setting: 11.6 in / Max. Preload Setting: 12.6 in
Seat Height
36 in / 39.4 in
Curb Weight
1,960 lb
Fuel Tank Capacity
7.9 gal
