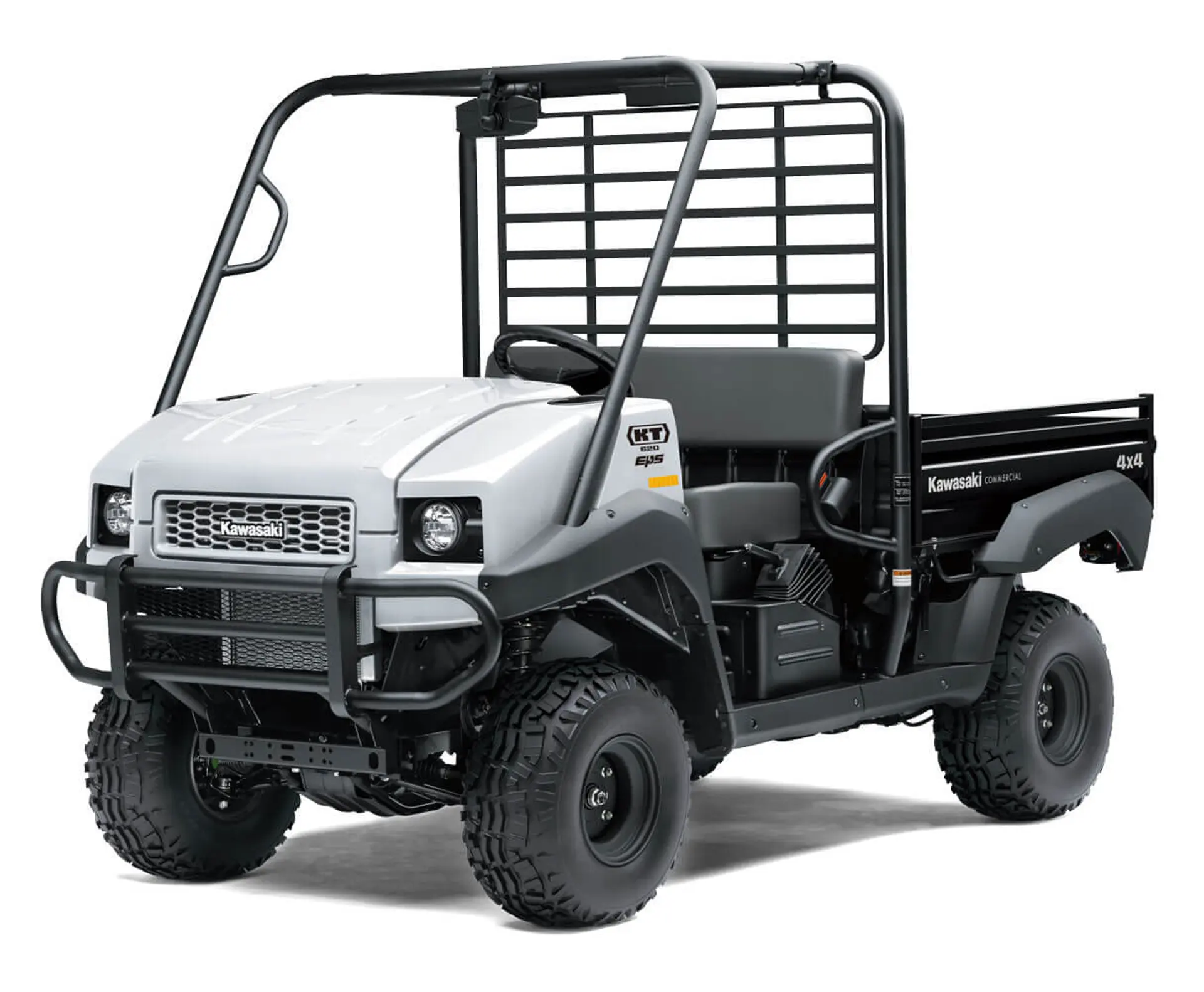

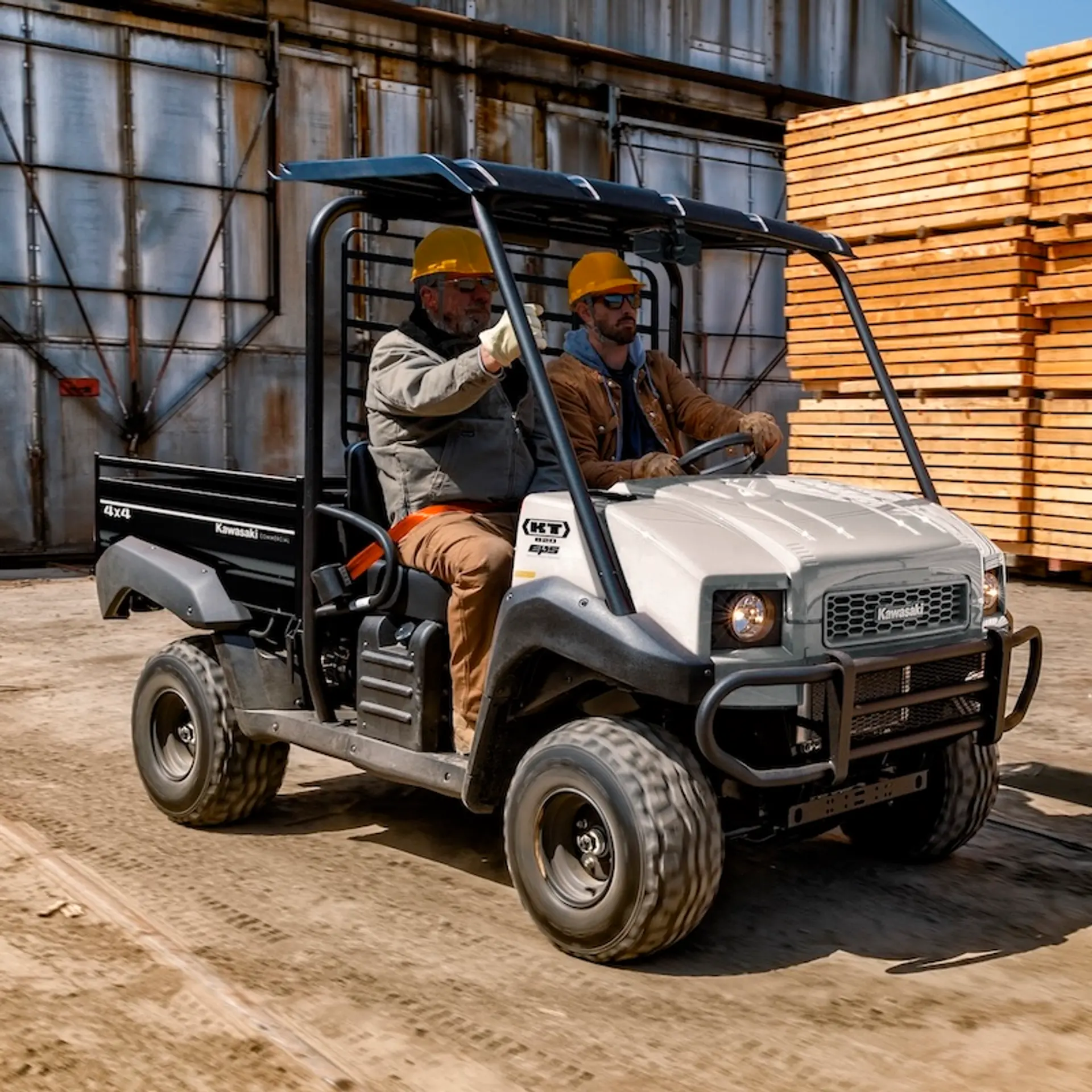

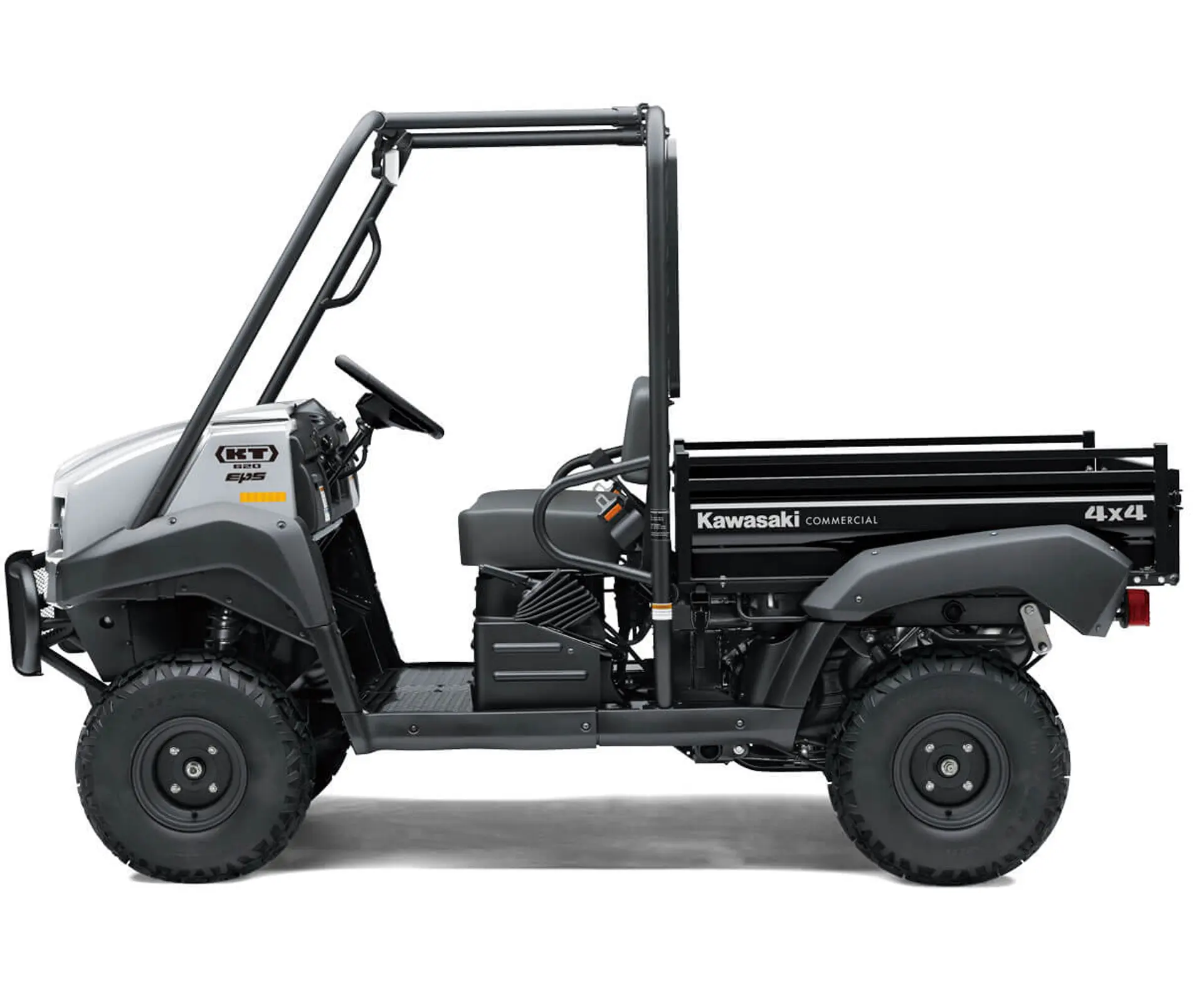

Image 1 of 5KT620 4x4
Payload and performance
- 4-stroke, 2-cylinder engine
- Electrically selectable 2WD/4WD/differential lock
- Electric power steering (EPS)
- 6.3-gallon fuel capacity
- 1,200 lb. maximum towing capability
BASE MODEL MSRP*$11,899.00
Features
Our UTVs are versatile, reliable, and designed for tough tasks. Hauling, towing, transporting, and more — these vehicles adapt to your needs.
Ample payload capacity
Impressive towing capabilities
Robust 617cc engine
Electric power steering (EPS)
800 lbs. cargo bed load capacity
Specifications
The Kawasaki Commercial KT620 4x4 is designed to deliver exceptional payload and performance, making it a reliable choice for demanding tasks. With advanced features and a focus on durability, this UTV is built to handle a variety of challenges.
Main Features
Main Features
- Overall Length
- 116.7 in
- Overall Width
- 62.0 in
- Overall Height
- 75.8 in
- Curb Weight
- 1,437 lb
- Fuel Capacity
- 6.3 gal
- Maximum Torque
- 34.7 lb-ft @ 2,500 rpm
- Cargo Bed Load Capacity
- 800 lb
- Maximum Towing Capability
- 1,200 lb
- Engine
- 4-Stroke, 2-Cylinder, OHV, 90° V Liquid-Cooled
- Displacement
- 617 cc
- Fuel System
- Fuel injection : MIKUNI AC34
- Driving System
- 4WD, Gear
Performance
Performance
- Max. Torque
- 34.7 lb-ft / 2,500 rpm
- Min. Turning Radius
- 11.2 ft
- Cargo Bed Load Capacity
- 800 lb
- Cargo Box (Inside) L x W x H
- 35.6 x 40.9 x 9.6 in
- Seating Capacity
- 2 Persons
- Max. Permissible Load
- 1323 lb
- Max. Towing Capability
- 1,200 lb
Engine
Engine
- Type
- 4st, 2-Cyl, OHV, 90° V Liquid-Cooled
- Bore x Stroke
- 76.0 x 68.0 mm
- Displacement
- 617 cc
- Compression Ratio
- 10.3:1
- Fuel Supply
- Fuel Injection: MIKUNI AC34
- Lubrication System
- Forced Lub. Wet
- Starting System
- EL. Starter
- Ignition System
- Magneto & Transistor
Drivetrain
Drivetrain
- Driving System
- 4WD, Gear
- Transmission
- 2-SP, AUTOMATIC, Reverse
- Gear Ratios: Forward (High)
- 1.821 (51/28)
- Gear Ratios: Forward (Low)
- 3.750 (51/28 x 25/20 x 28/17)
- Gear Ratios: Reverse
- 4.220 (41/20 x 25/20 x 28/17)
- Primary Reduction Ratio
- 3.900 ~ 0.850 (Belt Converter)
- Final Reduction Ratio: Front
- 5.200 (18/15 x 39/9)
- Final Reduction Ratio: Rear
- 5.429 (76/14)
Frame
Frame
- Type
- Steel Tube, Ladder Type
- Suspension: Front
- MacPherson Strut
- Suspension: Rear
- De Dion Axle
- Wheel Travel: Front
- 3.9 in
- Wheel Travel: Rear
- 2.8 in
- Caster (Rake Angle)
- 7.5°
- Trail
- 1.4 in
- Steering Angle (Left, Right)
- 47° (IN) / 34° (OUT), 47° (IN) / 34° (OUT)
- Tire: Front
- 23 x 11.00-10
- Tire: Rear
- 23 x 11.00-10
- Tread (Front / Rear)
- 45.7 in / 46.5 in
- Brake: Front Type
- Drum (Hydraulic) L&R
- Brake: Effect. Dia.
- 7.1 x 1 in
- Brake: Rear Type
- Drum (Hydraulic) L&R
- Brake: Effect. Dia.
- 7.1 x 1 in
- Parking Brake
- Drum (Mechanical Internal Expansion Type On Rear Wheels)
Dimensions
Dimensions
- Overall Length
- 116.7 in
- Overall Width
- 62 in
- Overall Height
- 75.8 in
- Wheelbase
- 73.6 in
- Road Clearance
- 7.5 in
- Seat Height
- 34.1 in
- Curb Weight
- 1,437 lb
- Fuel Tank Capacity
- 6.3 gal
